Comparing the Relative Stability of Non-Equivalent Molecules

How do you compare the stability of two or more compounds which differ in some central atom(s)?

If you simply calculate the energy of both compounds you get a misleading answer since the number of electrons is different from one to the next -in fact, the answer is not so much misleading as it is erroneous. Take compounds 1 and 2 shown in figure 1, for example. Compound 1 was recently synthesized characterized through X-Ray crystallography by my friend Dr. Monica Moya’s group; compound 2 doesn’t exist and we want to know why – or at least know if it is relatively unstable respect to 1.

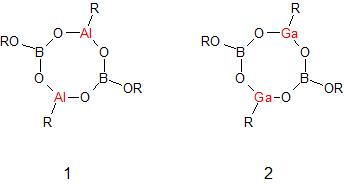

Figure 1. Compound 1 exists but compound 2 is apparently less stable. Is it?

Figure 1. Compound 1 exists but compound 2 is apparently less stable. Is it?

Although stoichiometry is the same, varying only by the substitution of Ga by Al the number of electrons is quite different. We then made the following assumption: Since the atomic radii of Ga and Al are quite similar (according to the CCDC their respective covalent radii are 122[4] and 121[3] pm), relative stability must rely on the bonding properties rendering 2 harder to obtain, at least through the method used for 1. The total energy for compound 1 was calculated at the M06-2X/6-31G(d,p) level of theory; then both Al atoms were changed by Ga and the total energy was calculated again at the same level. Separately, the energy of isolated Ga and Al atoms were calculated. Compensating the number of electrons was now a simple algebraic problem:

ΔE = E(MnBxOy) – nEM + nEM’ – E(M’nBxOy)

 The absolute energy difference E1 – E2 is staggering due to the excess of 36 electrons in 2. But after this compensation procedure we now have a more reliable result of ΔE value of ca. 81 kcal/mol in favor of compound 1. In strict sense, we performed geometry optimizations at various stages: first on compound 1 to remove the distorsions due to the crystal field and then on the substituted compound 2 to make sure Ga atoms would find a right fit in the molecule but since their covalent radii are similar, no significant changes in the overall geometry were observed confirming the previous assumption.

We now have the value of the energy difference between 1 and 2 and other similar cases, the next step is to find the distal causes of the relative stability which may rely on the bonding properties of the Ga-O bond respect to the Al-O bonds.

What do you think? Is there another method you can share for tackling this problem? Please share your thoughts on the comments section.

Thanks for reading.

Advertisements

About joaquinbarroso

Theoretical chemist in his early thirties, in love with life and deeply in love with his woman. I love science, baseball, literature, movies (perhaps even in that order). I'm passionate about food and lately wines have become a major hobby. In a nutshell I'm filled with regrets but also with hope, and that is called "living".

Posted on October 27, 2015, in Computational Chemistry, Models, Theoretical Chemistry, Tricks, White papers and tagged , , , , , , , , , , , . Bookmark the permalink. 3 Comments.

  1. What compounds 1 is synthesized from? We can evaluate the thermodynamic of reaction by calculating energy difference of 1 and reactants. Then change Al to Ga, calculate thermodynamic of synthesizing 2 from the respective reactants and compare.

    • Dear Anna

      That would be a great idea! In fact your method is obviously the most formal/correct way to go, I was just trying to get some feedback about this scheme which I haven’t found anywhere else and I’m not sure how valid it is so I keep on testing it. Do you have any opinion on it?
      I will ask my experimental colleagues what starting materials they used and will get back to you.
      Thanks again!

      • Your Idea sounds to me unusual but nevertheless logical. Any way I feel like the results from this tow approaches will differ. It’s very interesting to compare! Pleas share when you get any results.
