A new paper on the Weak Link Approach

Chemically actuating a molecule is a very cool thing to do and the Weak Link Approach (WLA) allows us to do precisely that through the reversible coordination of one or various organometallic centers to a longer ligand that opens or closes a macrocyclic cavity. All this leads to an allosteric effect so important in biological instances available in inorganic molecules. Once again, the Mirkin group at Nortwestern University in Evanston, Illinois, has given me the opportunity to contribute with the calculations to the energetic properties of these actuators as well as their electronic properties for their use as molecular scavengers or selective capsules for various purposes such as drug delivery agents.

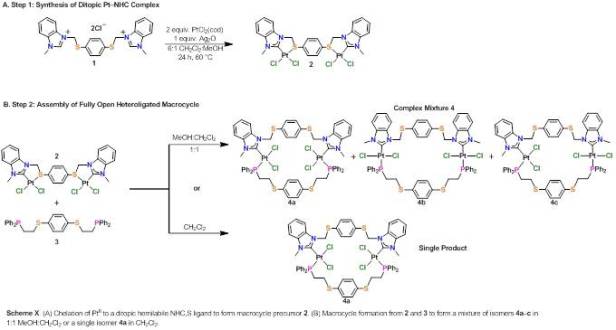

As in the previous WLA work (full paper), the NBODel procedure was used at the B97D/LANL2DZ level of theory, only this time the macrocycle consisted of two organometallic centers and for the first time the asymmetric opening of the cavity was achieved, as observed by NMR. With the given fragments, all possibilities shown in scheme 1 were obtained. The calculated bond energies for the Pt – S bonds are around 60 – 70 kcal/mol whereas for the Pt – Cl bonds the values are closer to 90 kcal/mol. This allows for a selective opening of the cavity which can then be closed by removing the chlorine atoms with the help of silver salts.

For the case of complex mixture 4a, 4b, and 4c, the thermochemistry calculations show they are all basically isoenergetic with differences in the thousandths of kcal/mol. The possibilities for the groups in the weakly bonded ligands are enormous; currently, there is work being done about substituting those phenyl rings for calix[4]arenes in order to have a macrucyclic capsule made by macrocylic capusules.

Thanks to Andrea D’Aquino for taking me into her project, for all the stimulating discussions and her great ideas for expanding WLA into new avenues; I’m sure she’ll succeed in surprising us with more possibilities for these allosteric macrocycles.

The full paper is published in Inorganic Chemistry from the ACS (DOI: 10.1021/acs.inorgchem.7b02745). Thanks for reading and -if you made it this far into the post- happy new year!
